Punch 6"x9" 4-Way Full Range SpeakerP1694

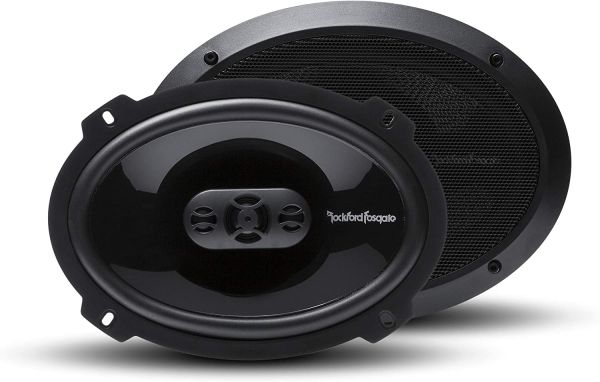

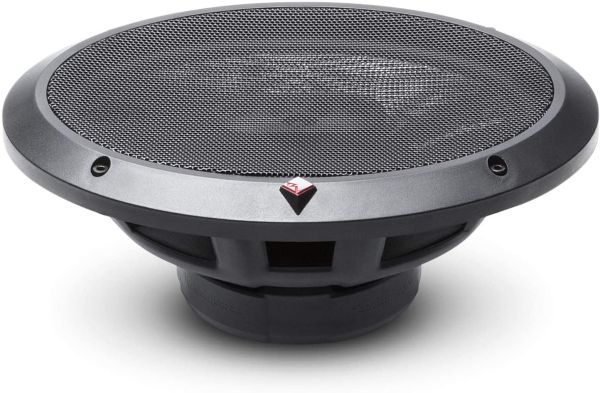

The P1694 is a 6”x9” 4-way full-range speaker rated at 75 watts RMS designed for fanatics needing a quality factory replacement driver. Includes two speakers with grilles, integrated high-pass crossovers and mounting hardware.

Systems that need a premium drop-in speaker will certainly benefit from this Punch series 6"x9" full-range speaker. The P1694 offers a similar sonic experience to the P1692, but in a fullfilling 4-way array. The Flex Fit™ basket ensures compatibility with odd shaped factory speaker locations and an ICC (Integrated Concealed Crossover) eliminates the need to mount any black boxes.

• FlexFit basket design
• PEI dome tweeter
• Butyl midrange rubber surround
• Injection molded mineral filled polypropylene cone
• 1 Year Warranty

• Nominal Impedance (Ohms)

  4-Ohm

  CEA-2031 Compliant



  Midrange Size
  (Nominal Diameter)

  6"x9"

  Speaker Type

  4-Way Coax

  Tweeter Size
  (Nominal Diameter)

  0.75"
  (19.0mm)

  Tweeter Mounting Depth

  Power Handling (RMS)

  75 Watts RMS
  150 Watts Max

  Frequency Response (Hz)

  60Hz - 24kHz

  Sensitivity
  (dB @ 1W/1M)

  91dB

  Mounting Hardware

  Yes

  Shipping Weight

  8.8 Lbs.
  (3.99 Kg.)

  Midrange Mounting Depth

  3.07"
  (78mm)

  Crossover

  n/a - tweeter has built-in crossover

  Grille/Trim Ring Included

  Yes
